Specification
|

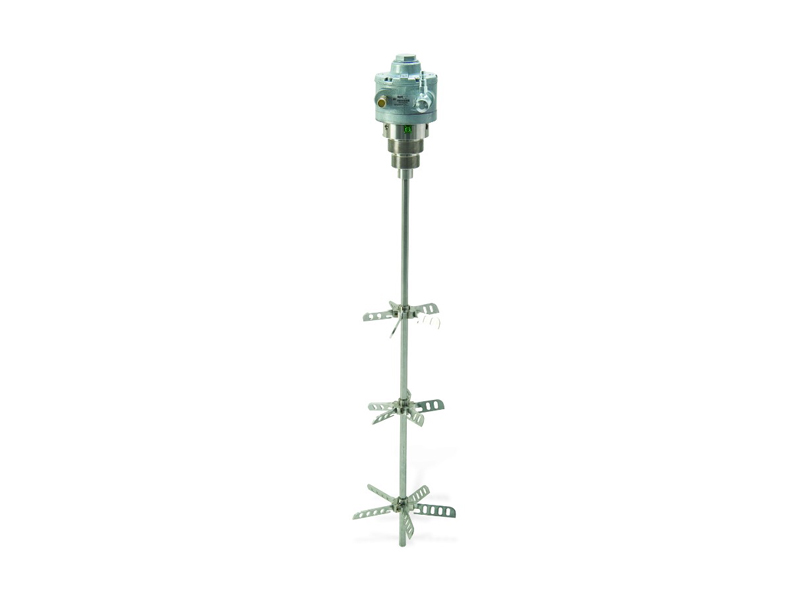

Expanding Blade Mixer |
|
|
Maximum Working Pressure |
0.70 MPa/7.0 bar |
|
Maximum Recommended Agitator Speed |
500 rpm |
|
Wetted Parts |
303, 18–8, and 304 stainless steel |
|
Bung Adapter Thread Sizes |
1 1/2–11.5 npsm and 2–11.5 npsm |
|
Weight |
|
|
Model 24C728 (low viscosity) |
4.4 kg |
|
Model 24C729 (high viscosity) |
5.9 kg |
|
Air consumption |
|
|
Model 24C728 (low viscosity) |
0.34 cu m/min at 400 rpm with 100 psi /0.7 MPa, 7 bar |
|
Model 24C729 (high viscosity) |
0.62 cubic m/min at 400 rpm with 100 psi /0.7 MPa, 7 bar |
|
Noise Level maximum load |
|
|
Model 24C728 (Low Viscosity) pressure (at 100 psi (0.7 MPa, 7 bar)) |
73.32 dB (Tested in water to ISO 9614–2) |
|
Model 24C728 (Low Viscosity) power (at 100 psi (0.7 MPa, 7 bar)) |
80 dB (Tested in water to ISO 9614–2) |
|
Model 24C729 (High Viscosity) pressure (at 100 psi (0.7 MPa, 7 bar)) |
75.74 dB (Tested in water to ISO 9614–2) |
|
Model 24C729 (High Viscosity) power (at 100 psi (0.7 MPa, 7 bar)) |
82.32 dB (Tested in water to ISO 9614–2) |
