เครื่องพ่นซีเมนต์กันไฟ
Specification
|

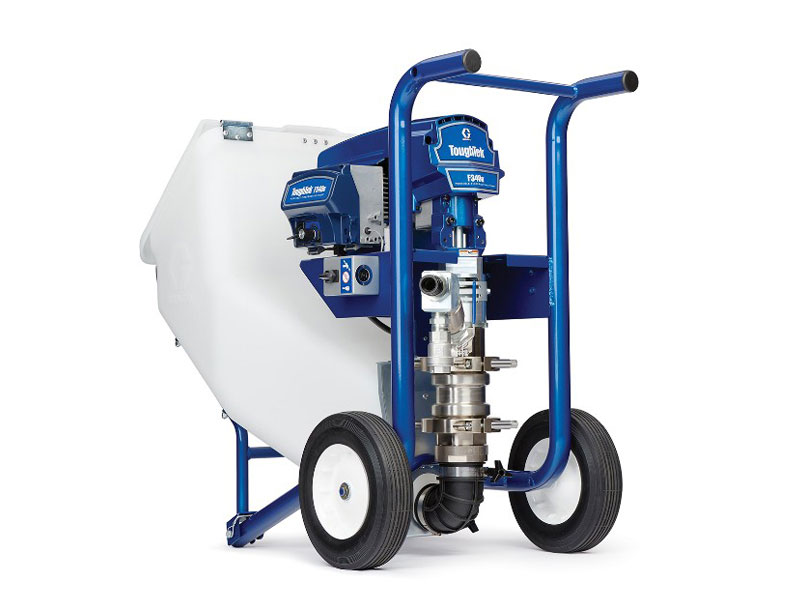

ToughTek F340e Sprayer |
|
|
Maximum Fluid Working Pressure |
600 psi |
|
Stroke Length |
2.25 in. |
|
Maximum pump speed (Do not exceed maximum recommended speed of fluid pump to prevent premature pump wear) |
150 cycles per minute |
|
Weight (dry) |
210 lb |
|
Wetted Parts |
Stainless steel, plated steel, carbide, urethane, PTFE, UHMWPE, LLDPE, aluminum, solvent-resistant o-rings |
|
Inlet/Outlet Sizes |
|
|
Fluid Inlet Size |
3 in. |
|
Fluid Outlet Size |
1.5 in. npt(f) with 1.5 in. cam and groove fitting |
|
Hose Requirements |
|
|
Minimum Pressure |
600 psi |
|
Minimum Hose Diameter |
1.0 in. |
|
Minimum Hose Length |
25 ft |
|
Power Requirements |
|
|
100–120 VAC Models |
1 phase, 50/60 Hz |
|
200–240 VAC Models |
1 phase, 50/60 Hz |
|
Noise Level |
|
|
Sound Power |
90.4 dBa* |
|
Sound Pressure |
80.5 dBa* |
|
*per ISO 3744; measured at 3.1 ft |
|
|
Operating Ambient Temperature Range |
|
|
Temperature |
° |
