T1 and T2 Transfer Pumps T1 and T2 Transfer Pumps T1 and T2 Transfer Pumps
หมวดหมู่สินค้า: ปั้มส่งวัตถุดิบ

22 สิงหาคม 2559

ผู้ชม 1375 ผู้ชม

Specification

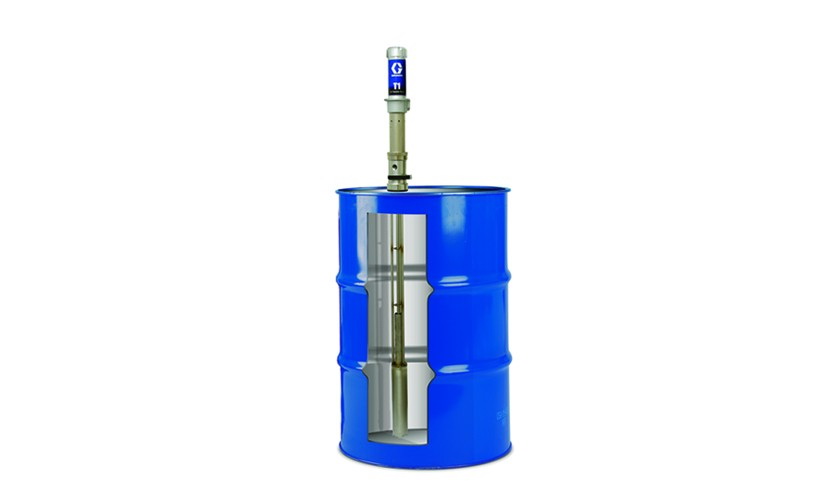

T1 2:1 Ratio Transfer Pump

U.S.

Metric

Pressure ratio

2.1

Maximum fluid working pressure

(2.5 MPa, 25 bar)

Maximum air inlet pressure

(1.2 MPa, 12 bar)

Pump cycles per 1 gallon (3.8 liters)

40

Maximum recommended pump speed for continuous operation

100 cycles per min (150 cycles per min. intermittent)

Gallons (liters) per pump cycle

0.095 liters

Air consumption

See Performance Chart on page 28.

Maximum ambient temperature

(50° C)

Maximum fluid temperature

(82° C)

Wetted parts.

Stainless Steel, PTFE, PEEK

Fluid recirculation port

3/8 npt(f)

Air inlet port

1/4 npt(f)

Fluid outlet port

1/2 npt(f)

Weight

(8.4 kg)

Sound Pressure

(0.55 MPa, 5.5 bar)

Sound Power, per ISO 9614-2

(0.55 MPa, 5.5 bar)



T2 2:1 Ratio Transfer Pump



Metric

Maximum Fluid Working Pressure*

2.8MPa, 28 bar

Pressure Ratio

2.25:1

Max Output Flow (continuous)

20 lpm

Max Output Flow (intermittent)

28 lpm

Maximum Air inlet pressure

1.2 MPa, 12 bar

Pump cycles per 1 gallon (3.8 liters)

15.9

Maximum recommended pump speed for continuous operation

100 cycles per min (150 cycles per min intermittent)

Gallons (liters) per pump cycle

0.24 l

Air consumption

See performance chart

Maximum Ambient temperature

50° C

Maximum Fluid Temperature

88° C

Wetted parts

Stainless Steel, PTFE

Air Inlet Port

1/4 npt(f)

Fluid Outlet Port

3/4 npt(f)

Weight

9.5 kg

Sound Pressure

88.7 dB(A) at 80 psi (.55 MPa, 5.5 bar)

Sound Power, per ISO 9614-2

96.8 dB(A) at 80 psi (.55 MPa, 5.5 bar)
