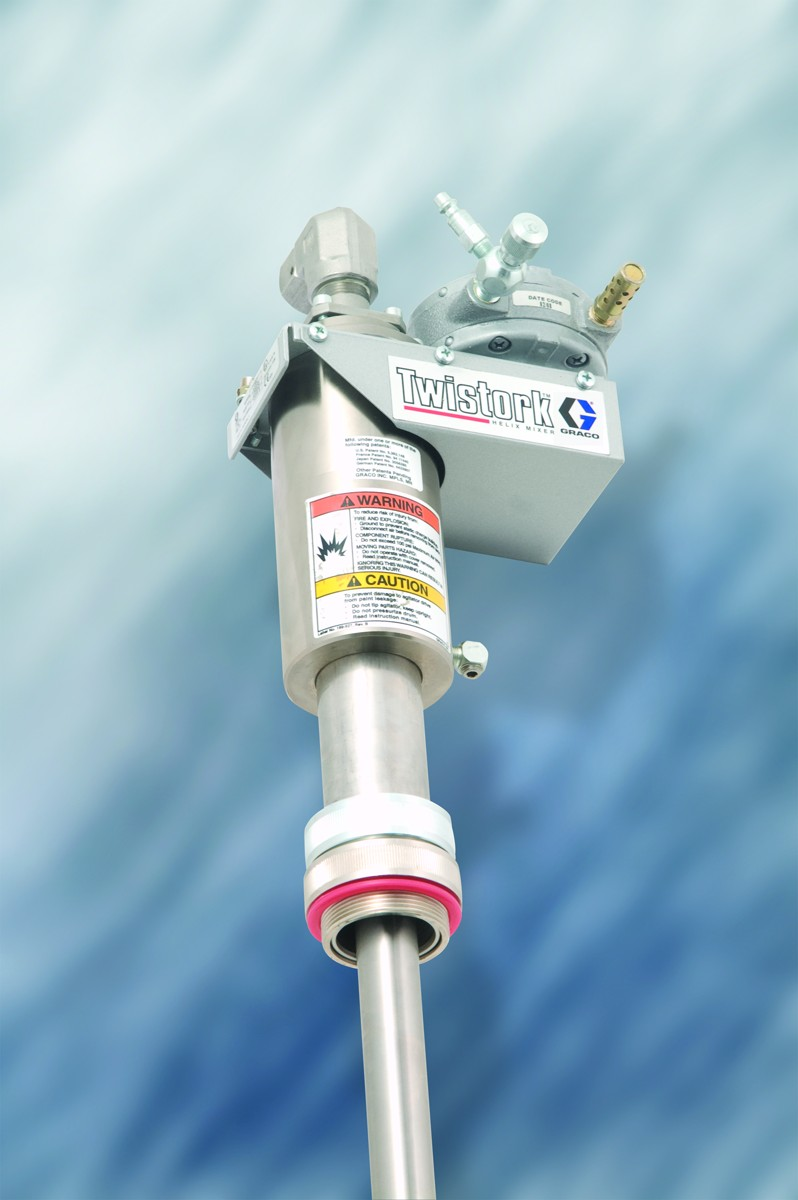

![Twistork Agitators Twistork Agitators](sites/9023/files/s/products/o_1aqoa17071v5t1fmfd3sn5avcm.png)
Specification
Twistork Helix Mixer |
|
Maximum Working Pressure |
7 bar |
Maximum Recommended Agitator Speed |
800 rpm |
Air Consumption |
At 800 rpm with 7 bar air inlet pressure: 0.14 m/min. |
At 400 rpm with 100 psi air inlet pressure: 2 scfm |
At 400 rpm with 7 bar air inlet pressure: 0.06 m/min |
Weight |
8 kg |
Wetted Parts |
Model 224854: Carbon Steel, Fluoroelastomer, Acetal |
Model 235534: 304 & 316 Stainless Steel, Fluoroelastomer, Acetal |
|
External Parts that may come in contact with fluids: |
Plate: Carbon Steel |
Air Motor: Aluminum |
|
*Noise Level at 100 psi normal load at 800 rpm |
Pressure: 71.3 dB(A) |
Power : 84.6 dB(A) |
|
Noise Level at 100 psi at no load at max rpm |
Pressure : 84.1 dB(A) |
Power: 97.4 dB(A) |
|
*Tested to CAGI-PNEUROP–1969 |
