Specification

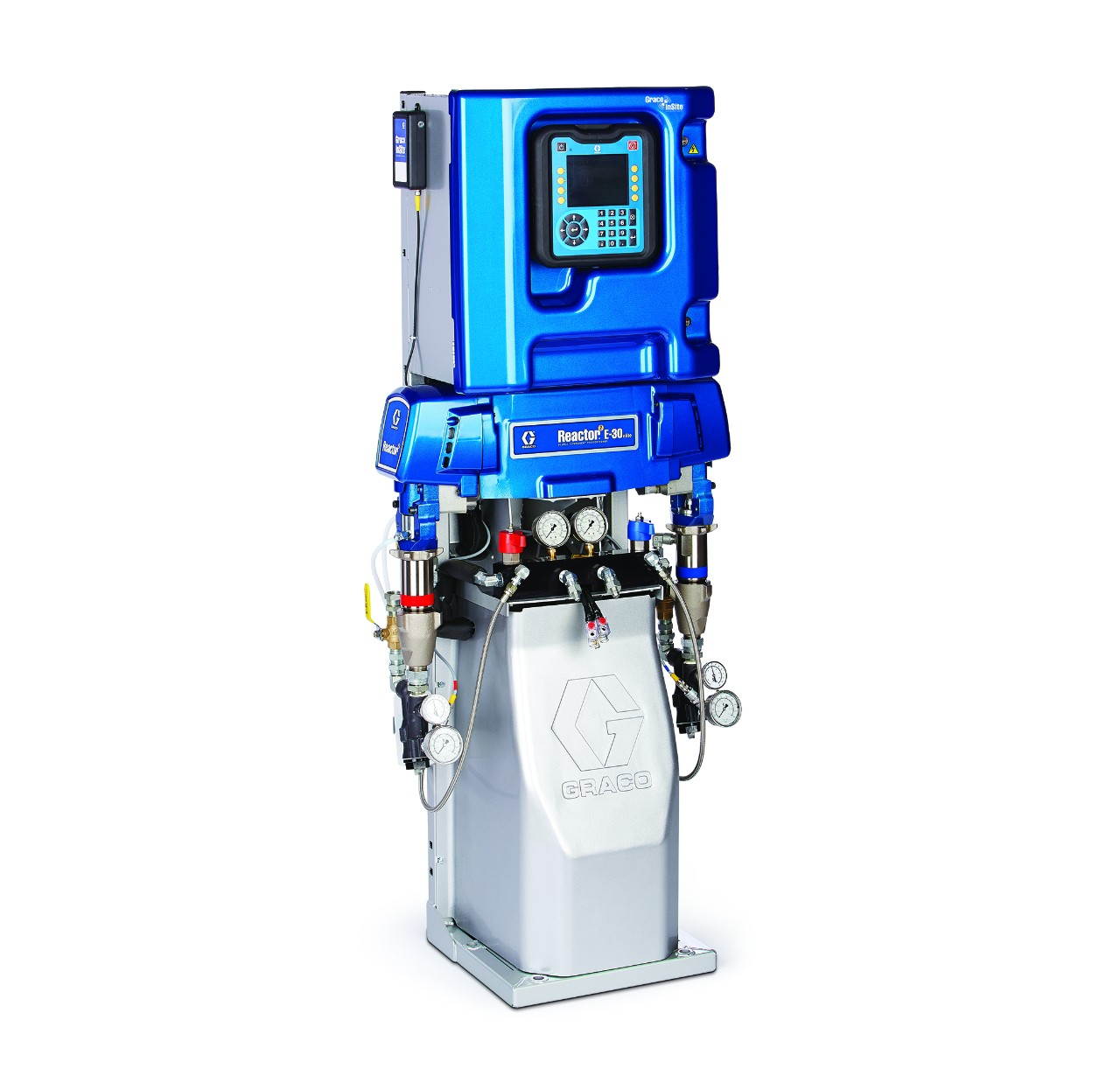

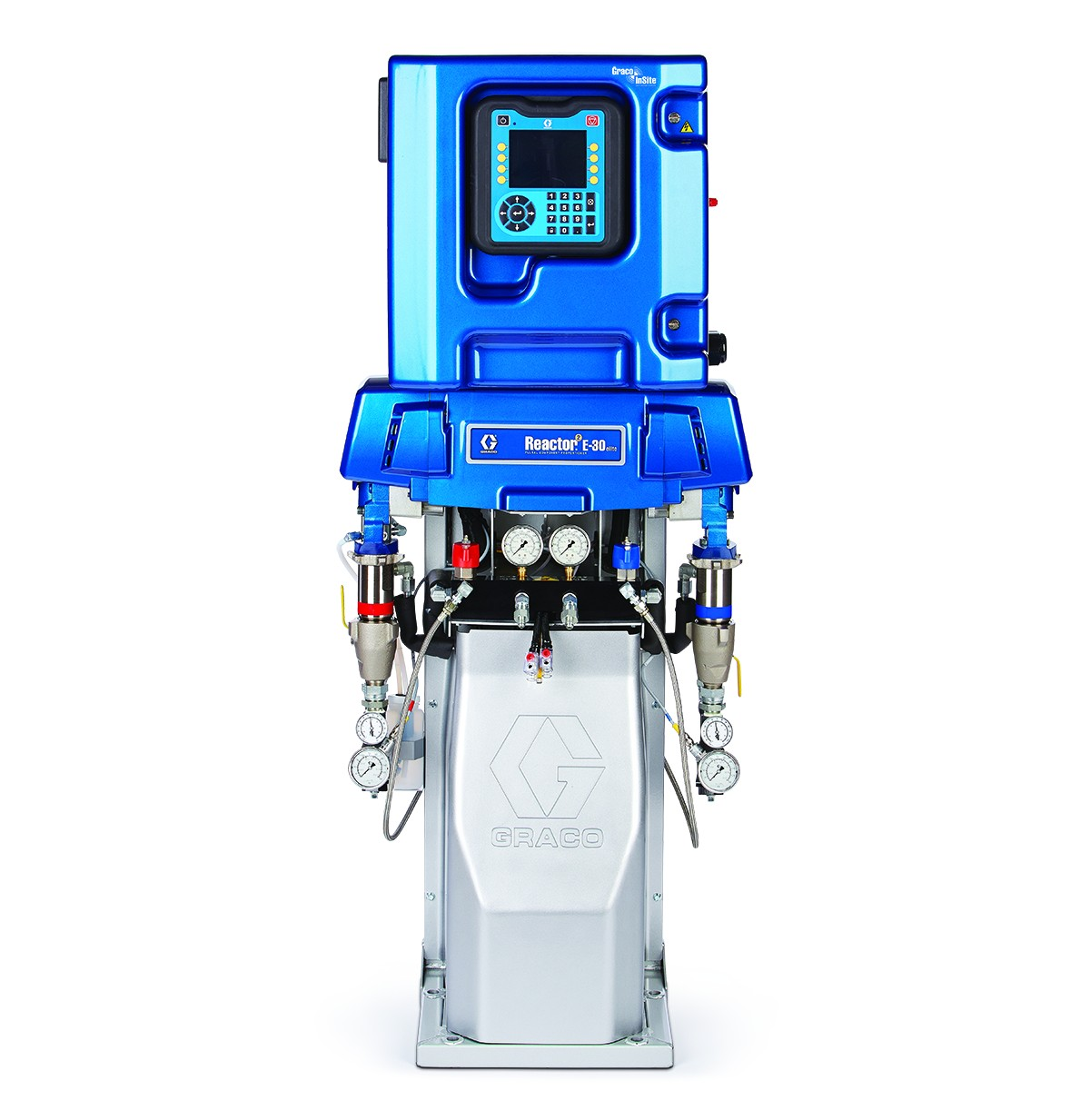

| Reactor 2 E-30 and E-XP2 Proportioning System | |
| Maximum Fluid Working Pressure | |
| E-30 |
2000 psi
|
| E-XP2 |
3500 psi
|
| Maximum Fluid Temperature | |
| E-30 |
190°F
|
| E-XP2 |
190°F
|
| Maximum Flow Rate | |
| E-30 |
30 lb/min
|
| E-XP2 |
2 gpm
|
| Maximum Heated Hose Length | |
| Length |
310 ft
|
| Output per Cycle, ISO and RES | |
| E-30 |
0.0272 gal.
|
| E-XP2 |
0.0203 gal.
|
| Operating Ambient Temperature Range | |
| Temperature |
20° to 120°F
|
| Line Voltage Requirement | |
| Nominal 200–240 VAC, 1 Phase, 50/60 Hz |
195–265 VAC
|
| Nominal 200–240 VAC, 3 phase, DELTA, 50/60 Hz |
195–265 VAC
|
| Nominal 350–415 VAC, 3 phase, WYE, 50/60 Hz |
340–455 VAC
|
| Heater Power, (at 230 VAC rated voltage) | |
| E-30 10 kW |
10,200 Watts
|
| E-30, 15 kW |
15,300 Watts
|
| E-XP2 15 kW |
15,300 Watts
|
| Sound Pressure, Sound Pressure measured per ISO-9614–2. | |
| E-30, Measured from 3.1 ft (1 m), at 1000 psi (7 MPa, 70 bar), 3 gpm (11.4 lpm) |
87.3 dBA
|
| E-XP2, Measured from 3.1 ft (1 m), at 3000 psi (21 MPa, 207 bar), 1 gpm (3.8 lpm) |
79.6 dBA
|
| Sound Power | |
| E-30, Measured from 3.1 ft (1 m), at 1000 psi (7 MPa, 70 bar), 3 gpm (11.4 lpm) |
93.7 dBA
|
| E-XP2, Measured from 3.1 ft (1 m), at 3000 psi (21 MPa, 207 bar), 1 gpm (3.8 lpm) |
86.6 dBA
|
| Fluid Inlets | |
| Component A ISO) and Component B (RES) |
3/4 NPT(f) with 3/4 NPSM(f) union
|
| Fluid Outlets | |
| Component A (ISO) |
#8 (1/2 in.) JIC, with #5 (5/16 in.) JIC adapter
|
| Component B (RES) |
#10 (5/8 in.) JIC, with #6 (3/8 in.) JIC adapter
|
| Fluid Circulation Ports | |
| Size |
1/4 NPSM(m)
|
| Maximum Pressure |
250 psi
|
| Dimensions | |
| Width |
26.3 in.
|
| Height |
63 in.
|
| Depth |
15 in.
|
| Weight | |
| E-30, 10 kW |
315 lb
|
| E-30, 15 kW |
350 lb
|
| E-30, 10 kW Elite |
320 lb
|
| E-30, 15 kW Elite |
355 lb
|
| E-XP2 |
345 lb
|
| E-XP Elite |
350 lb
|
| Wetted Parts | |
| Material |
Aluminum, stainless steel, zinc plated carbon steel, brass, carbide, chrome, chemically resistant o-rings, PTFE, ultra-high molecular weight polyethylene
|
