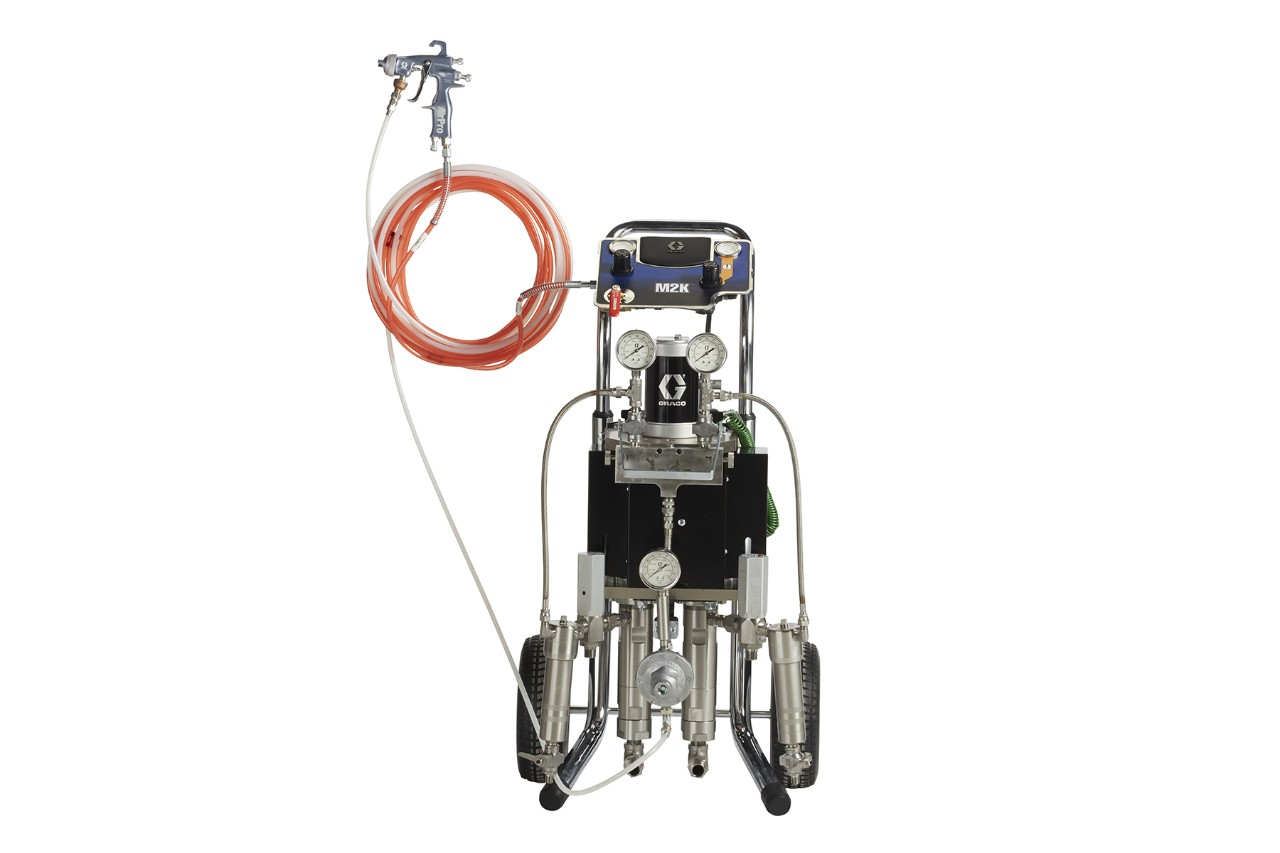

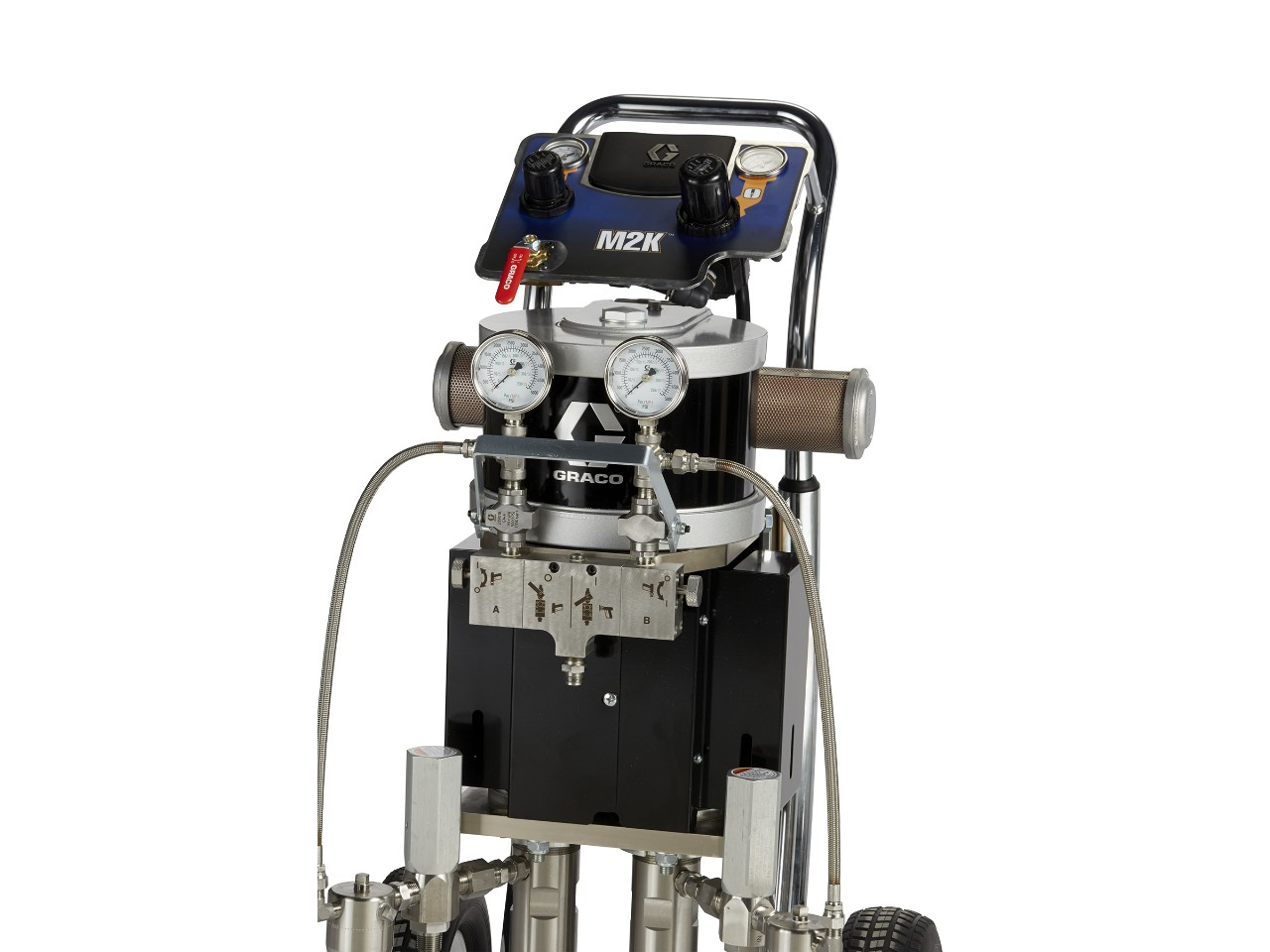

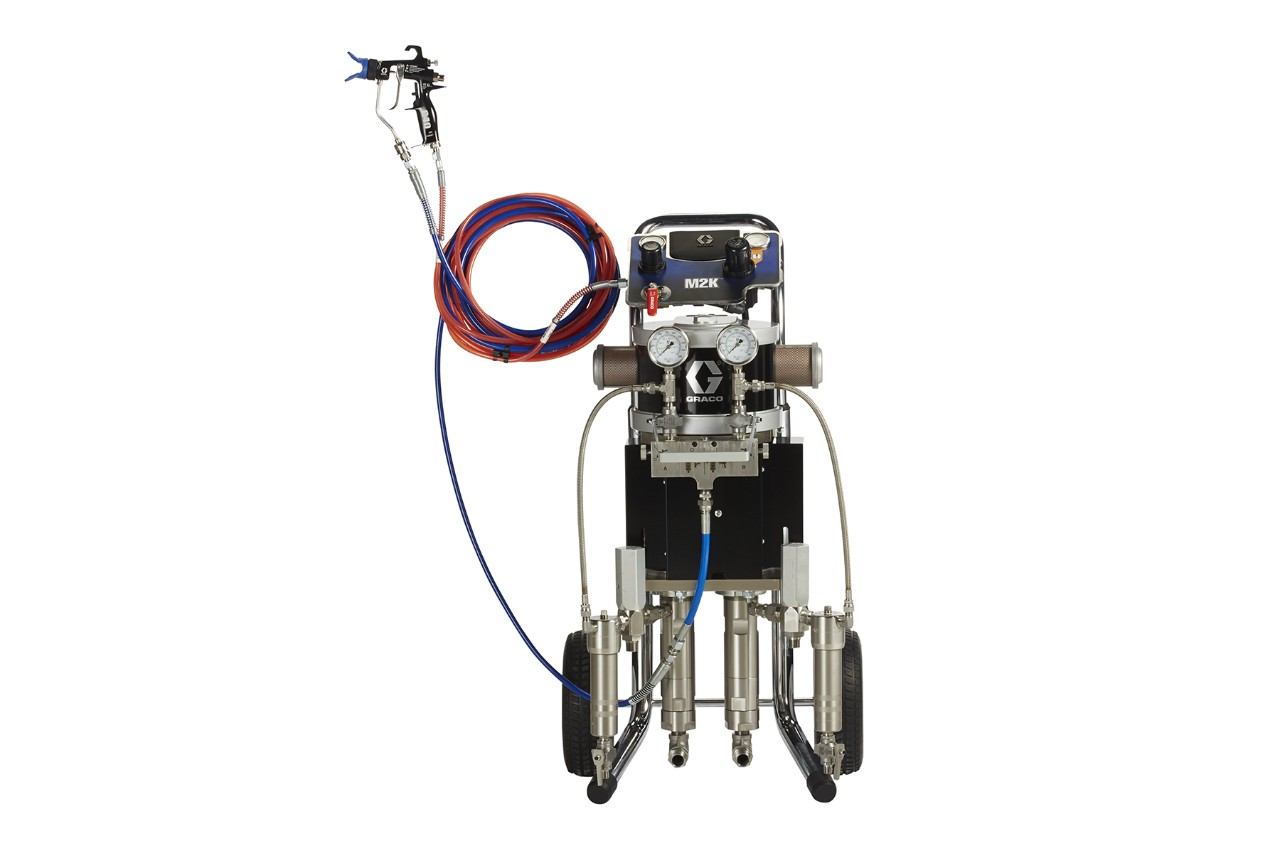

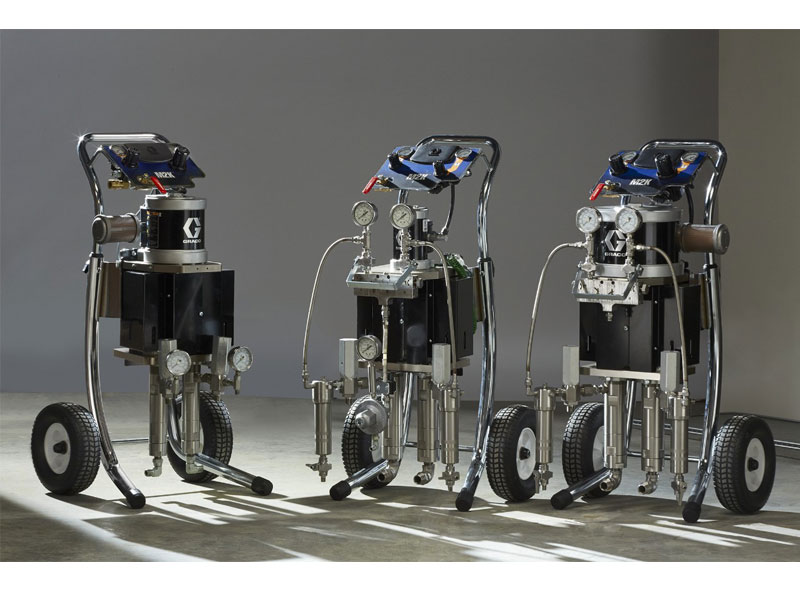

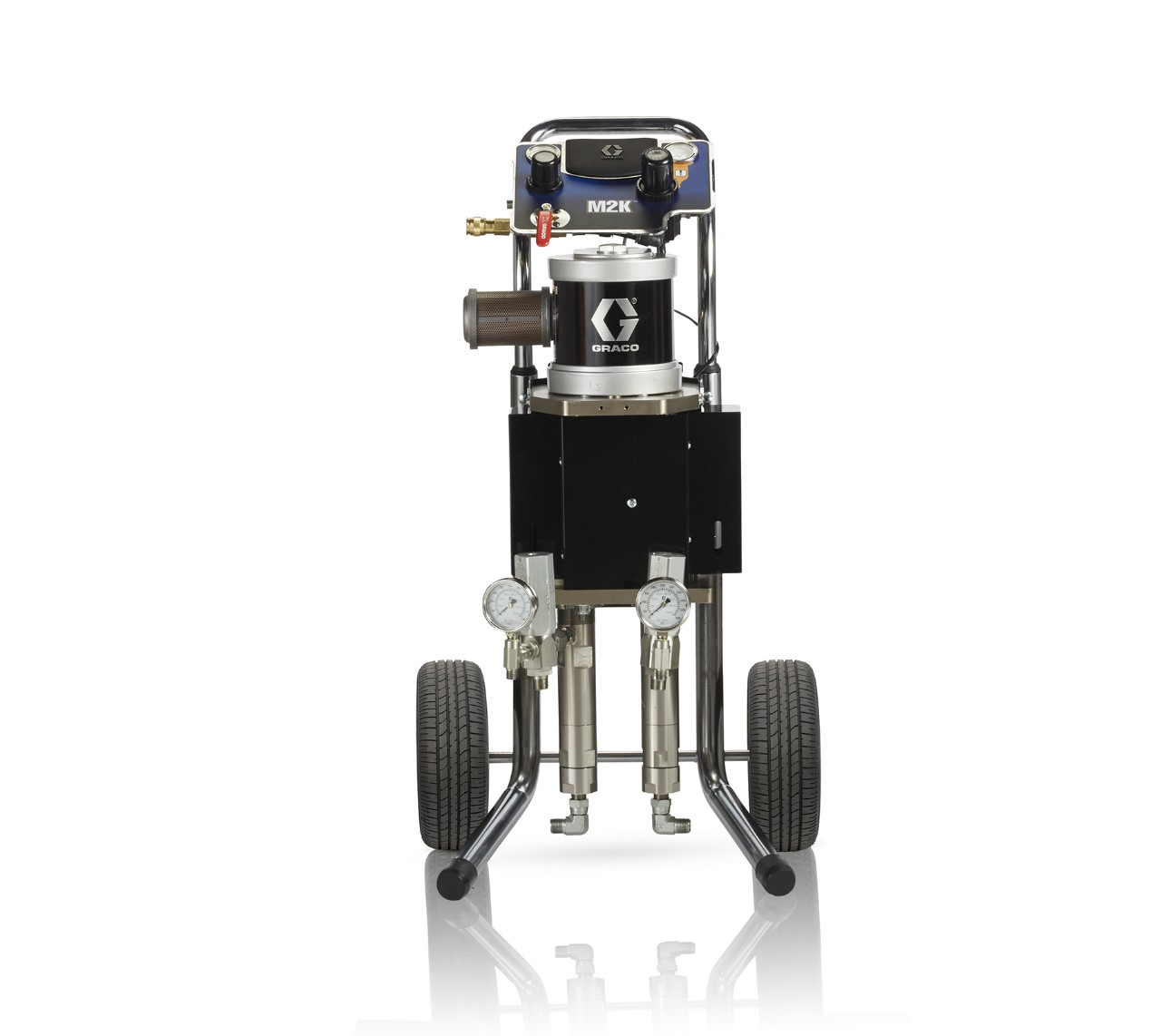

M2K Spray Packages

U.S.

Maximum fluid working pressure

Refer to Technical Data Matrix, instruction manual

Maximum flow rate

Refer to Technical Data Matrix, instruction manual

Maximum pump air pressure

Refer to Technical Data Matrix, instruction manual

Maximum spray gun pressure

See your gun manual for spray gun pressures.

Pump air consumption (See gun manual for additional air consumption)

Refer to Performance Charts, instruction manual

Maximum free-flow delivery <b >*NOTE: M2K proportioners are rated to 20 cycles per minute related flowrate to prevent cavitation and ensure complete pump loading, necessary to maintain ratio accuracy.

Recommended cycle rate for continuous duty

20 cycles per minute

Maximum viscosity

10,000 cps

Ambient air temperature range

35°–120°F

Maximum fluid temperature

160°F

Fluid flow per cycle

Refer to Technical Data Matrix, in instruction manual

Noise (dBa)

Maximum sound pressure

See Technical Data in air motor manual 312796.

Inlet/Outlet Sizes

Air inlet size

1/4 in. npt(f)

Materials of Construction**

Wetted materials on all models

Displacement pump: Stainless steel, tungsten carbide with 6% nickel, UHMWPE, PTFE, PEEK Spray gun: See Manual 312414 (Air Spray guns). 3A0149 (AA guns), or Manual 312145 (XTR guns). Fluid hoses: nylon 303/304 SST Suction assembly: stainless steel, nylon Relief valve, 304 SST, graphite-filled PTFE, tungsten carbide with nickel binder Fluid filter: See manual 307273. Drain valve: stainless steel, nylon

Weight:

All models

Refer to Technical Data Matrix, in instruction manual
