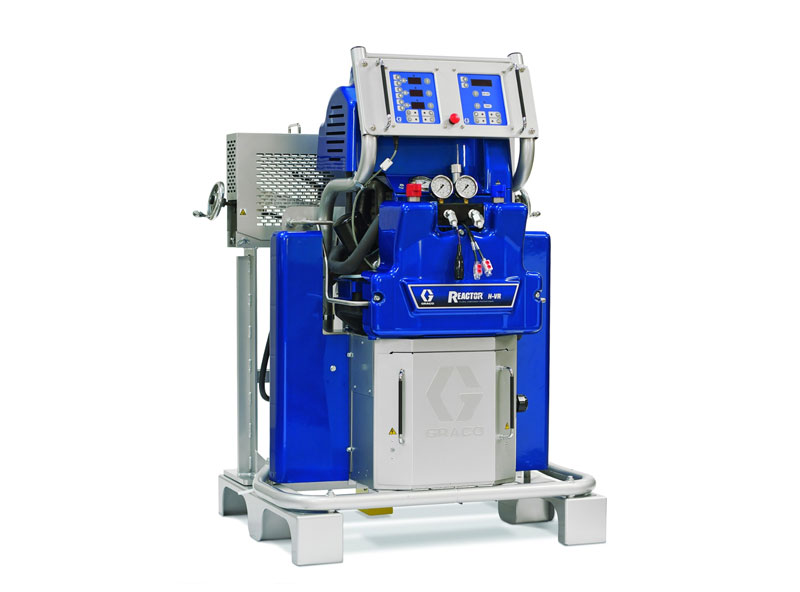

Reactor H-VR

Maximum Fluid Working Pressure

241 bar, 24.1 MPa

Fluid Inlets

3/4 npsm union in 1 in. npt(f) ball valve

Fluid Circulation Ports

1/4 npsm(m), with plastic tubing, 250 psi (1.75 MPa, 17.5 bar) maximum

Maximum Fluid Temperature

881°C

Maximum Output ( 10 weight oil at ambient temperature) 1:1

3.0 gpm (11.4 liter/min) (60 Hz)

Output per Cycle (A and B)

Variable: 2 oz.- 5 oz. (60 cc - 150 cc) per pump*

Stroke Length

Variable: 2 in. - 5 in. (5.08 cm - 12.7 cm)

Amperage Requirement

See instruction manual.

Heater Power (A and B heaters total, no hose)

See instruction manual.

Hydraulic Reservoir Capacity

13.6 liters

Recommended Hydraulic Fluid

Citgo A/W Hydraulic Oil, ISO Grade 46

Sound Power, measured per ISO 9416–2

90.9 dB(A)

Sound Pressure, measured 1 m from equipment

84.0 dB(A)

Weight

433 kg

Wetted Parts

Aluminum, stainless steel, zinc-plated carbon steel, brass, carbide, chrome, fluoroelastomer, PTFE, ultra-high molecular weight polyethylene, chemically resistant o-rings

Line Voltage Requirement

230V 3 phase units:

195-264 Vac, 50/60 Hz

400V 3 phase units:

338-457 Vac, 50/60 Hz

Fluid Outlets

Component A (ISO):

#8 (1/2 in.) JIC, with #5 (5/16 in.) JIC adapter

Component B (RES):

#10 (5/8 in.) JIC, with #6 (3/8 in.) JIC adapter

Notes

* Output example

2.5:1 ratio = 150 cc (B side):60 cc (A side)

2.5:1 output = 150 cc (B side) + 60 cc (A side) = 210 cc per cycle
