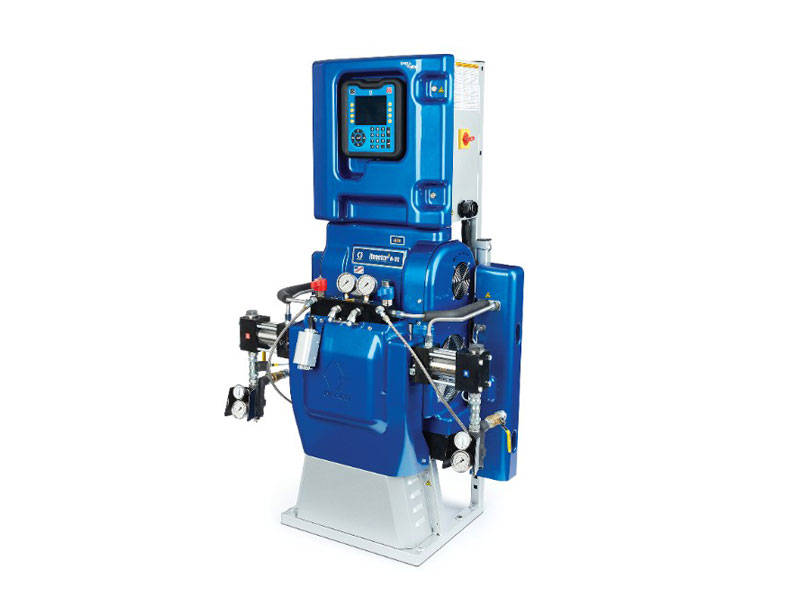

Reactor 2 H-30, H-40 and H-50

17 สิงหาคม 2559

ผู้ชม 1366 ผู้ชม

Specification

Reactor 2 Hydraulic Proportioning System

Maximum Fluid Working Pressure for Bare Proportioners

Models H-30, H-40, and H-50

13.8 MPa, 138 bar

Minimum Fluid Working Pressure for Bare Proportioners

H-30

4.8 MPa, 48 bar

H-40, H-50

4.1 MPa, 41 bar

Fluid: Oil Pressure Ratio

Model H-40

1.91 : 1

Models H-30 and H-50

1.64 : 1

Fluid Inlets

Component A (ISO)

3/4 npt(f), 2.07 MPa, 20.7 bar maximum

Component B (RES)

3/4 npt(f), 2.07 MPa, 20.7 bar maximum

Fluid Outlets

Component A (ISO)

#8 1/2 in. JIC, with #5 5/16 in. JIC adapter

Component B (RES)

#10 5/8 in. JIC, with #6 3/8 in. JIC adapter

Fluid Circulation Ports

1/4 npsm(m)

1.75 MPa, 17.5 bar

Maximum Fluid Temperature



88° C

Maximum Output (10 weight oil at ambient temperature)

Model H-30

13 kg/min (60 Hz)

Model H-50

24 kg/min (60 Hz)

Model H-40

20 kg/min (60 Hz)

Output Per Cycle (A and B)

Model H-40

0.24 liter

Models H-30 and H-50

0.28 liter

Supply Voltage Tolerance

200–240V nominal, 1 phase

195–264 VAC, 50/60 Hz

200–240V nominal, 3 phase

195–264 VAC, 50/60 Hz

650–415V nominal, 3 phase

338–457 VAC, 50/60 Hz

Amperage Requirement (phase)

See the Models listing in the manual.

Heater Power (A and B heaters total)

See the Models listing in the manual.

Hydraulic Reservoir Capacity
