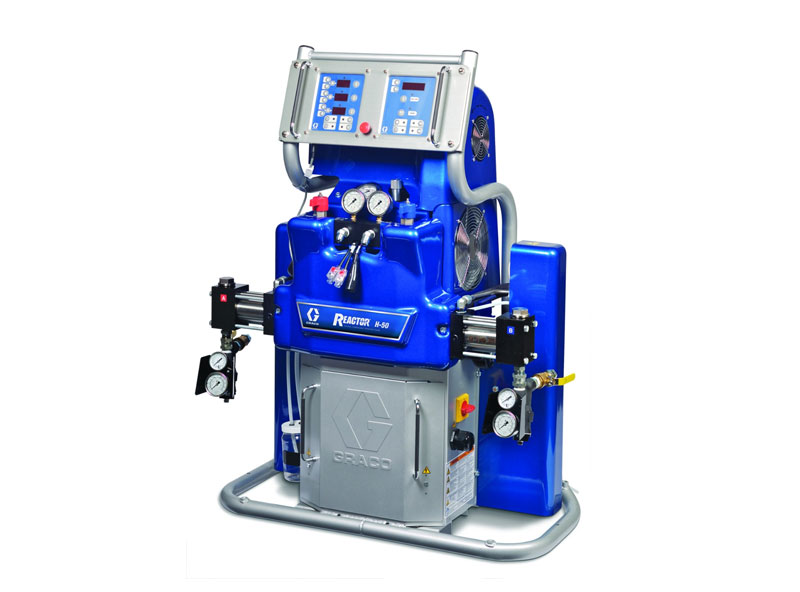

Reactor H-25, H-40 and H-50 Reactor H-25, H-40 and H-50 Reactor H-25, H-40 and H-50

17 สิงหาคม 2559

ผู้ชม 1097 ผู้ชม

Specification

Hydraulic, Heated, Plural Component Proportioner



Metric

Maximum Fluid Working Pressure

Models H-25 and H-40: (13.8 MPa, 138 bar) Model H-50 1 phase:(11.7 MPa, 11.7 bar) Model H-50 3 phase:(13.8 MPa, 138 bar) Models H-XP2 and H-XP3: (24.1 MPa, 241 bar)

Fluid: Oil Pressure Ratio

Models H-25 and H-40: 1.91:1. Model H-50: 1.64:1. Models H-XP2 and H-XP3: 2.79:1

Fluid Inlets

Component A (ISO): 1/2 npt(f), (1.75 MPa, 17.5 bar) maximum. Component B (RES): 3/4 npt(f), (1.75 MPa, 17.5 bar) maximum

Fluid Outlets

Component A (ISO): #8 (1/2 in.) JIC, with #5 (5/16 in.) JIC adapter. Component B (RES): #10 (5/8 in.) JIC, with #6 (3/8 in.) JIC adapter

Fluid Circulation Ports

1/4 npsm(m), with plastic tubing,(1.75 MPa, 17.5 bar) maximum

Maximum Fluid Temperature

(88°C)

Maximum Output (10 weight oil at ambient temperature)

Model H-25: 22 lb/min (10 kg/min) (60 Hz). Model H-XP2: 1.5 gpm (5.7 liter/min) (60 Hz). Model H-50: 52 lb/min (24 kg/min) (60 Hz). Model H-40: 45 lb/min (20 kg/min) (60 Hz). Model H-XP3: 2.8 gpm (10.6 liter/min) (60 Hz)

Output per Cycle (A and B)

Models H-25 and H-40: (0.23 liter). Model H-50: (0.28 liter). Models H-XP2 and H-XP3: (0.16 liter)

Line Voltage Requirement

230V 1 phase and 230V 3 phase units: 195-264 Vac, 50/60 Hz. 400V 3 phase units: 338-457 Vac, 50/60 Hz

Amperage Requirement

See Systems page in instruction manual.

Heater Power (A and B heaters total, no hose)

See Systems page in instruction manual.

Hydraulic reservoir capacity

(13.6 liters)

Recommended hydraulic fluid

Citgo A/W Hydraulic Oil, ISO Grade 46

Sound power, per ISO 9614-2

90.2 dB(A)

Sound pressure, 1 m from equipment

82.6 dB(A)

Weight

Units with 8.0 kW Heaters: (243 kg). Units with 12.0 kW Heaters: (271 kg). Units with 15.3 kW Heaters (H-25/H-XP2 models): (255 kg). Units with 15.3 kW Heaters (H-40/H-XP3/H-50 models): (271 kg). Units with 20.4 kW Heaters: (271 kg)

Wetted Parts

Aluminum, stainless steel, zinc-plated carbon steel, brass, carbide, chrome, fluoroelastomer, PTFE, ultra-high molecular weight polyethylene, chemically resistant o-rings

All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
