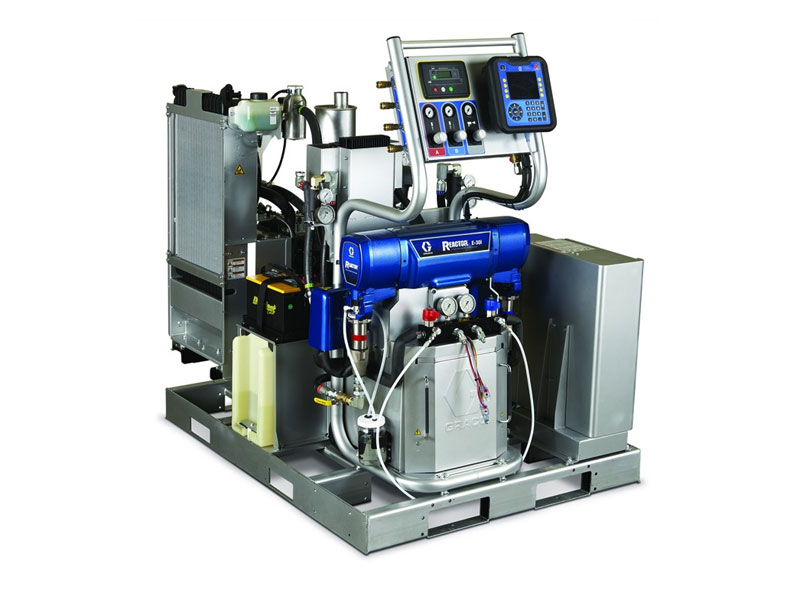

Reactor E-XP2i Reactor E-XP2i

13 สิงหาคม 2559

ผู้ชม 1084 ผู้ชม

Specification

Reactor 2 Elite Integrated Proportioning Systems

U.S.

Metric

Maximum Fluid Working Pressure

E-30i

14 MPa, 140 bar

E-XP2i

24.1 MPa, 241 bar

Maximum Fluid Temperature

E-30i

65°C

E-30i with booster heater

82°C

E-XP2i

82°C

Maximum Output

E-30i

13.5 kg/min

E-XP2i

7.6 lpm

Maximum Heated Hose Length

Length

94 m

Output per Cycle, A and B

E-30i

0.1034 liter

E-XP2i

0.0771 liter

Operating Ambient Temperature Range

Temperature

-7° to 49°C

Auxiliary Power Available

Voltage

120 Vac or 240 Vac, 60 Hz

Engine

Model

Perkins 404–22G, 2.2 L, 29 HP

Alternator

Model

Mecc Alte 22 kW, 240 V, 1 PH, 60 Hz, pancake style

Battery Requirements

Voltage

12 Vdc

Minimum Cold Cranking Amps

800 CCA

Connection Type

Post Style

Recommended Battery Size

BC Group Number

34

Length

260 mm

Width

173 mm

Height

200 mm

Booster Heater Power

E-30i

None

E-30i with booster heat

4000 Watts

E-XP2i

4000 Watts

Rotary Vane Air Compressor

Hydrovane Model V04 (PURS type), continuous run

Part No.

025CK10

Pressure

0.9 MPa, 9.6 bar

Specifications

16 cfm

Required Features

Thermal overload switch, Safety Relief Valve

Motor: Baldor

Part No.

EL1410–CUS

Specifications

5 HP, 1735 RPM, 240 V, 1 Phase, OPSB

Required Features

C face, lift rings

Refrigerated Air Dryer

Hankison Model H1T20

Specifications

115VAC, 1 Phase, 60 Hz, 22 scfm at 150 psi (1 MPa, 10.3 bar)

Required Features

Pilot valve unloader

Noise, Sound Pressure measured per ISO-9614–2.

Sound Pressure measured from 3.1 ft (1 m), at 1500 psi (10 MPa, 103 bar), 2 gpm (7.6 lpm)

91.0 dBA

Fluid Inlets

Component A (ISO) and Component B (RES)

3/4 NPT(f) with 3/4 NPSM(f) union

Fluid Outlets

Component A (ISO)

#8 (1/2 in.) JIC, with #5 (5/16 in.) JIC adapter

Component B (RES)

#10 (5/8 in.) JIC, with #6 (3/8 in.) JIC adapter

Fluid Circulation Ports

Size

1/4 NPSM(m), with sst braided tubing

Maximum Pressure

1.75 MPa, 17.5 bar

Weight

E-30i

794 kg

E–30i with compressor and dryer

998 kg

E-30i with booster heat

816 kg

E–30i with booster heat, compressor, and dryer

1021 kg

E-XP2i

816 kg

E–XP2i with compressor and dryer

998 kg

Wetted Parts

Material

Aluminum, stainless steel, zinc plated carbon steel, brass, carbide, chrome, chemically resistant o-rings, PTFE, ultra-high molecular weight polyethylene
