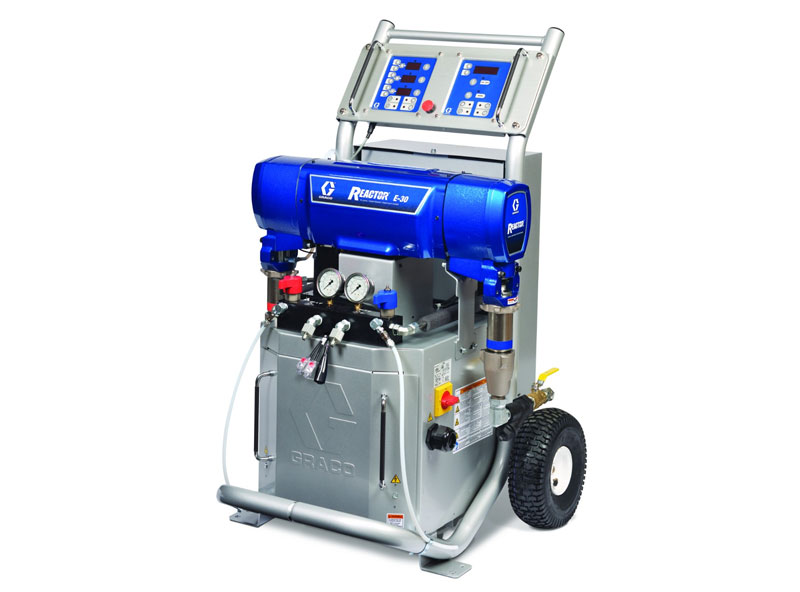

Reactor E-20

13 สิงหาคม 2016

ผู้ชม 939 ผู้ชม

Specification

Reactor E-20, E-30, E-XP1, E-XP2 Series

Maximum Fluid Working Pressure

Models E-20 and E-30: 2000 psi (14 MPa, 140 bar), Model E-XP1: 2500 psi (17.2 MPa, 172 bar), Model E-XP2: 3500 psi (24.1 MPa, 241 bar)

Maximum Fluid Temperature

88°C

Maximum Output

Model E-20: 20 lb/min (9 kg/min), Model E-30: 30 lb/min (13.5 kg/min), Model E-XP1: 1 gpm (3.8 liter/min), Model E-XP2: 2 gpm (7.6 liter/min)

Output per Cycle (A and B)

Model E-20 and E-XP1: 0.0104 gal. (0.0395 liter), Model E-30: 0.0272 gal. (0.1034 liter), Model E-XP2: 0.0203 gal. (.0771 liter)

Line Voltage Requirement

Parts 259024, 259025, 259026, 259028, 259057: 195-264 Vac, 50/60 Hz, Parts 259029, 259030, 259031, 259032, 259059: 338-457 Vac, 50/60 Hz, Parts 2590330, 259034, 259035, 259036, 259058: 195-264 Vac, 50/60 Hz

Amperage Requirement

See Table 1, page 19 in manual 312065

Heater Power

Model E-20: 6000 Watts, Model E-30 and E-XP1: 10200 Watts, Models E-XP2 and E-30 with 15.3kW of heat: 15300 Watts

Sound Power, per ISO 9614–2

Model E-20: 80 dB(A) at 2000 psi (14 MPa, 140 bar), 0.5 gpm (1.9 lpm), Model E-30: 93.5 dB(A) at 1000 psi (7 MPa, 70 bar), 3.0 gpm (11.4 lpm), Model E-XP1: 80 dB(A) at 2000 psi (14 MPa, 140 bar), 0.5 gpm (1.9 lpm), Model E-XP2: 83.5 dB(A) at 3000 psi (21 MPa, 210 bar), 1.0 gpm (3.8 lpm)

Sound Pressure 1 m from equipment

Model E-20: 70.2 dB(A) at 2000 psi (14 MPa, 140 bar), 0.5 gpm (1.9 lpm), Model E-30: 83.6 dB(A) at 1000 psi (7 MPa, 70 bar), 3.0 gpm (11.4 lpm), Model E-XP1: 70.2 dB(A) at 2000 psi (14 MPa, 140 bar), 0.5 gpm (1.9 lpm), Model E-XP2: 73.6 dB(A) at 3000 psi (21 MPa, 210 bar), 1.0 gpm (3.8 lpm)

Fluid Inlets

3/4 npt(f), with 3/4 npsm(f) union

Fluid Outlets

Component A (ISO): #8 (1/2 in.) JIC, with #5 (5/16 in.) JIC adapter, Component B (RES): #10 (5/8 in.) JIC, with #6 (3/8 in.) JIC adapter

Fluid Circulation Ports

1/4 npsm(m), with plastic tubing; 250 psi (1.75 MPa, 17.5 bar) maximum

Weight

Model E-20 and E-XP1: 342 lb (155 kg), Model E-30: 400 lb (181kg), Models E-XP2 and E-30 with 15.3kW of heat: 438 lb (198 kg)

Wetted parts

Aluminum, stainless steel, zinc plated, carbon steel, brass, carbide, chrome, chemically resistant o-rings, PTFE, ultra-high molecular weight polyethylene

All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
