Reactor E-10hp Reactor E-10hp

24 สิงหาคม 2016

ผู้ชม 798 ผู้ชม

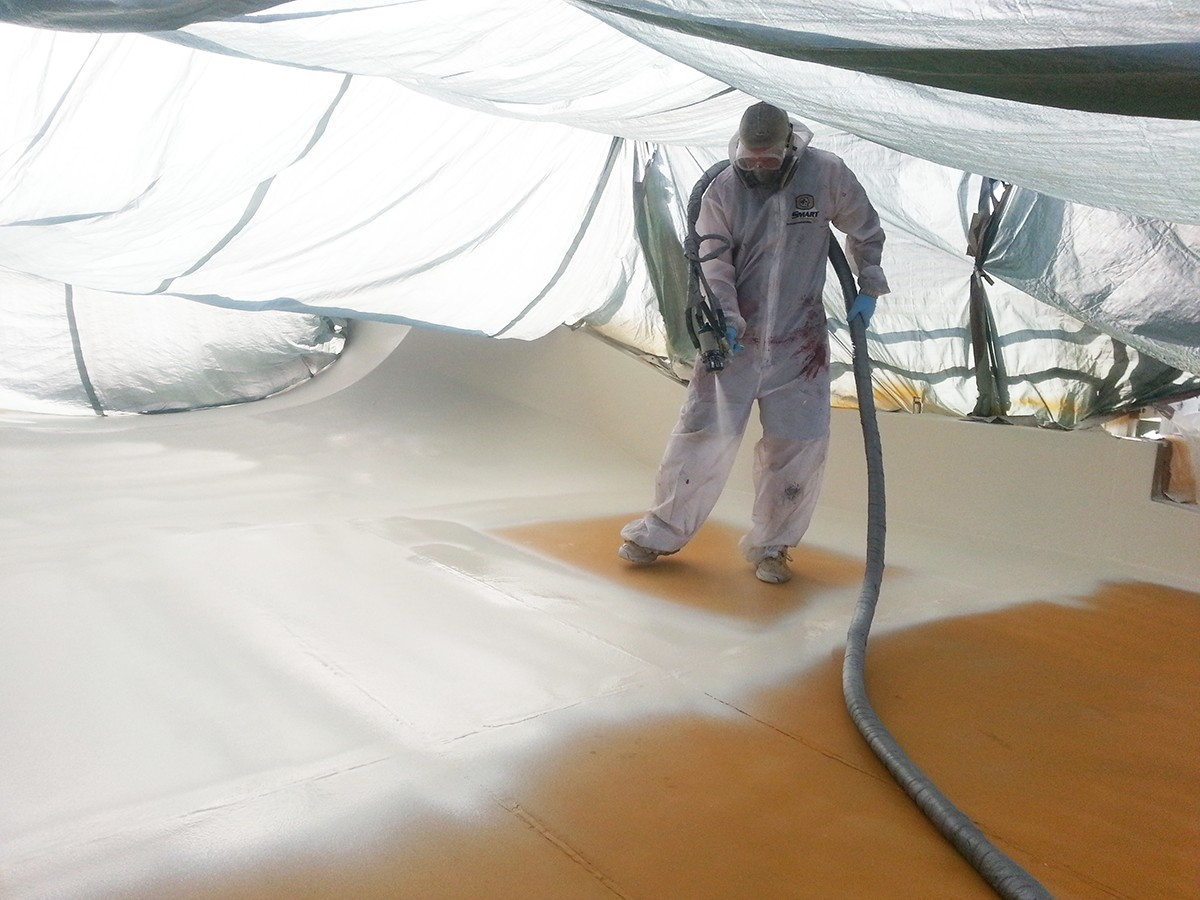

เครื่องพ่นโพลียูเรีย

Specification

Reactor E-10hp

Maximum fluid working pressure

20.6 MPa, 206 bar

Maximum spray pressure: 120 V

15.2 MPa, 152 bar

Maximum spray pressure: 230 V

17.2 MPa, 172 bar

Maximum fluid temperature

77°C

Maximum ambient temperature

48°C

Maximum output

3.8 liters/min

Output per cycle (ISO and RES)

0.014 liters/cycle

Air inlet

1/4 in. quick-disconnect industrial type pin fitting

Air outlet

1/4 npsm(m)

Overpressure relief

Recirc/Spray valves automatically relieve excessive fluid pressure back to supply tanks

Gun compressed air requirements

Fusion Gun (purge air and operating air): 4 scfm (0.112 m³/min)

Maximum hose length

32 m

Tank capacity each (nominal)

22.7 liters

Weight (empty)

108 kg

<b >Recommended Mix Chamber Sizes

Fusion® Air Purge

000, AW2222 (00 and 01 at reduced spray pressure)

Probler® P2

AA (00 and 01 at reduced spray pressure)

<b >Electrical Requirements

120 V

120 VAC, 1 phase, 50/60 Hz, 3840 W; requires two separate, dedicated 20 A circuits. Full load peak amperage 16 A per circuit

230 V

230 VAC, 1 phase, 50/60 Hz, 5520 W; requires two separate, dedicated 15 A circuits. Full load peak amperage 12 A per circuit.

Generator Size

120 V

5000 W minimum

230 V

7500 W minimum

Heater Power

120 V

3000 W during recirculation, 2000 W during pressure spray mode

230 V

4000 W during recirculation, 2760 W during pressure spray mode

Sound Pressure

In fast recirculation mode

71.3 dB(A)

Measure at 2500 psi (17 MPa, 172 bar), 1 gpm (3.8 lpm)

85.6 dB(A)

Sound Power Sound power measured per ISO-9614-2.

In fast recirculation mode

79.9 dB(A)

Measure at 2500 psi (17 MPa, 172 bar), 1 gpm (3.8 lpm)

93.3 dB(A)

Fluid Outlets

ISO Side

-5 JIC male

RES Side

-6 JIC male

Fluid Circulation Returns

ISO side

-5 JIC male

RES side

-6 JIC male

Hose Markings

ISO side

Red

RES side

Blue

Wetted Parts

Wetted parts on all models

Aluminum, stainless steel, carbon steel, brass, carbide, chrome, chemically resistant o-rings, PTFE, ultra-high molecular weight polyethylene

All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
