Fusion Mechanical Purge Fusion Mechanical Purge
หมวดหมู่สินค้า: ปืนพ่นโฟม PU

11 สิงหาคม 2016

ผู้ชม 737 ผู้ชม

Specification

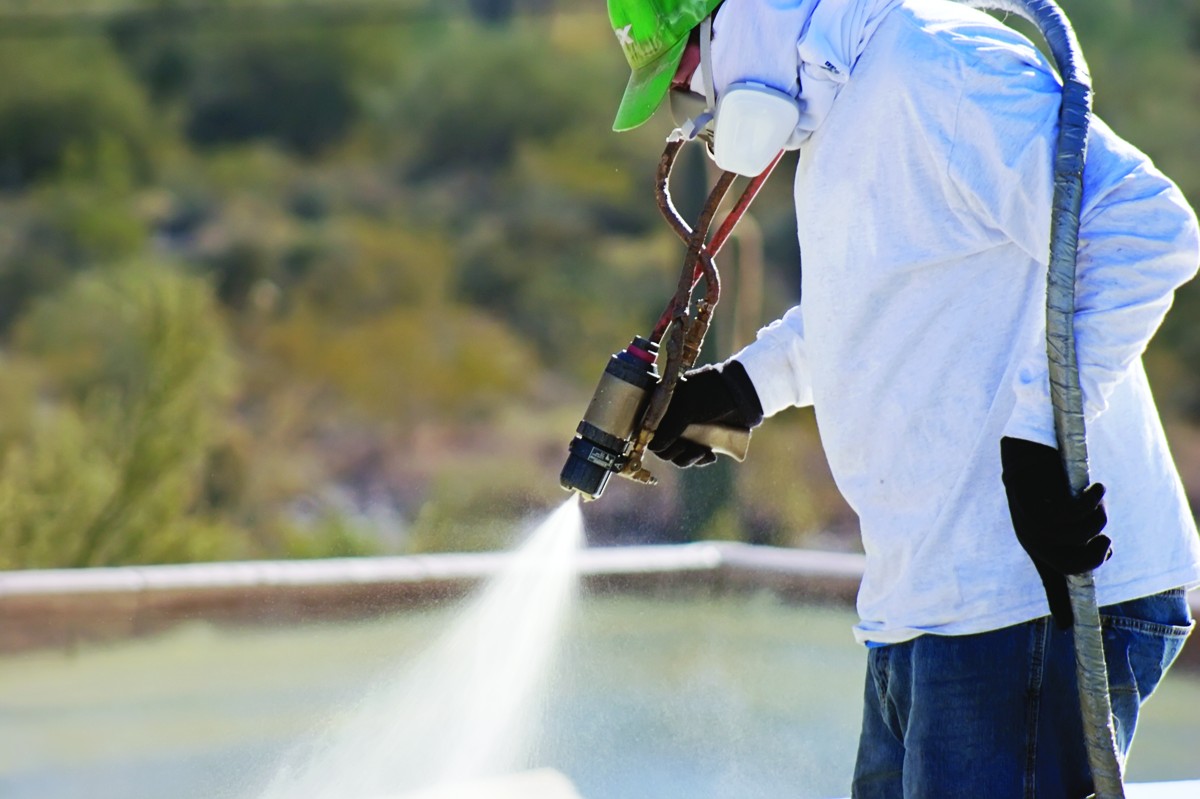

Fusion Plural Component, Impingement Mix Mechanical Purge Spray Gun
Maximum Fluid Working Pressure
24.2 MPa, 242 bar
Minimum Air Inlet Pressure
0.55 MPa, 5.5 bar
Maximum Air Inlet Pressure
0.9 MPa, 9 bar
Maximum Fluid Temperature
94°C
Air Inlet Size
1/4 npt Quick Disconnect Nipple
A Component (ISO) Inlet Size
-5 JIC; 1/2-20 UNF
B Component (Resin) Inlet Size
-6 JIC; 9/16-18 UNF
Typical Flow rate
See charts in instruction manual
Sound Pressure
70 dB(A), at 100 psi (0.7 MPa, 7 bar)
Sound Power, measured per ISO 9416–2
79.9 dB(A), at 100 psi (0.7 MPa, 7 bar)
Length
193 mm
Height
206 mm
Width
79 mm
Weight
1.32 kg
Wetted Parts
Aluminum, stainless steel, carbon steel, chemically resistant o-rings, ultra-high molecular weight polyethylene (UHMWPE), Polycarballoy™, CeramTip™
