 เครื่องพ่นทรายระบบไร้ฝุ่น

Ultra Max II 595 PC Pro
หมวดหมู่สินค้า: เครื่องพ่นสีบ้าน

13 กุมภาพันธ์ 2563

ผู้ชม 515 ผู้ชม

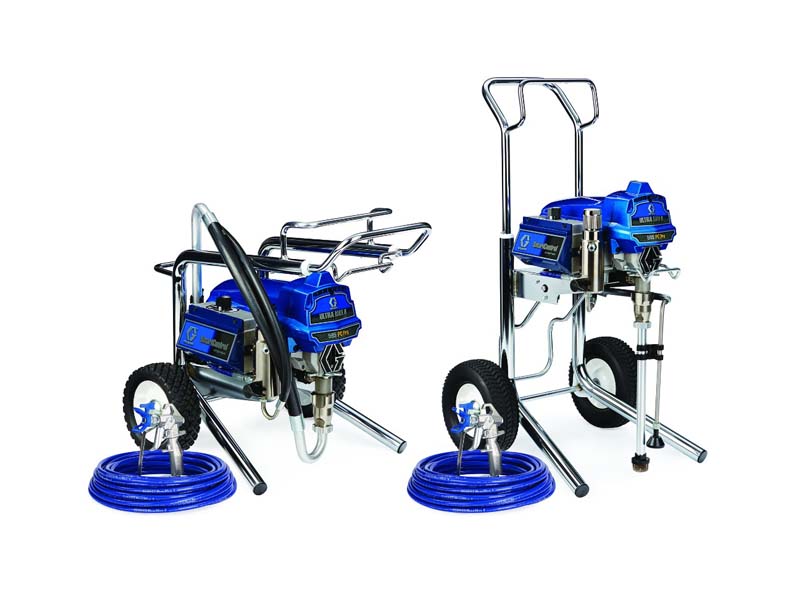

Ultra Max II 595 PC Pro
Electric Airless Sprayer
A proven sprayer for contractors who need professional features

The Ultra® Max II 595 PC Pro is a workhorse. It's proven to be a hit with contractors who are looking for higher output and professional features in a compact and portable sprayer.

Ultra Max 595











Specification

490, 495, 595, 395EU Electric Airless Sprayers
Sprayer
Maximum fluid working pressure
228 bar, 22.8 MPa
Maximum Delivery
395EU/490
2.0 lpm
495
2.3 lpm
595
2.6 lpm
Maximum Tip Size
395EU/490
0.023
495
0.025
595
0.027
Fluid Outlet npsm
1/4 in.
Cycles
395EU/490/495
164 per liter
595
143 per liter
Generator minimum
395EU/490
3500 W
495
3750 W
595
4000 W
Power Requirements
395EU/490 1 Ø, 50/60 Hz
110 – 120V, 12 A / 220 – 240V, 7 A
495 1 Ø, 50/60 Hz
110 – 120V, 15 A / 220 – 240V, 9 A
595 1 Ø, 50/60 Hz
110 – 120V, 15 A / 220 – 240V, 9 A
Dimensions
Height
Stand
47 cm
Lo-Boy
57.2 cm
Hi-Boy
71.8 cm (Handle down) 97.2 cm (Handle up)
Length
Stand
40.6 cm
Lo-Boy
67.3 cm
Hi-Boy
59.1 cm
Width
Stand
35.6 cm
Lo-Boy
50.6 cm
Hi-Boy
52.1 cm
Weight
Stand
395EU
20.5 kg
490/495
15 kg
Lo-Boy
395EU
29 kg
490/495
26.8 kg
595
31.8 kg
Hi-Boy
395EU
30 kg
490/495
30 kg
595
33 kg
Noise** (dBa) level at 70 psi (4.8 bar, 0.48 MPa)
Sound pressure
90 dBa
Sound power
100 dBa
Materials of Construction.
Wetted materials on all models
zinc- and nickel-plated carbon steel, nylon, stainless steel, PTFE, Acetal, leather, UHMWPE, aluminum, tungsten carbide, polyethylene, fluoroelastomer, urethane
Notes
* Startup pressures and displacement per cycle may vary based on suction condition, discharge head, air pressure, and fluid type. ** Sound pressure measured 3 feet (1 meter) from equipment. Sound power measured per ISO-3744.
