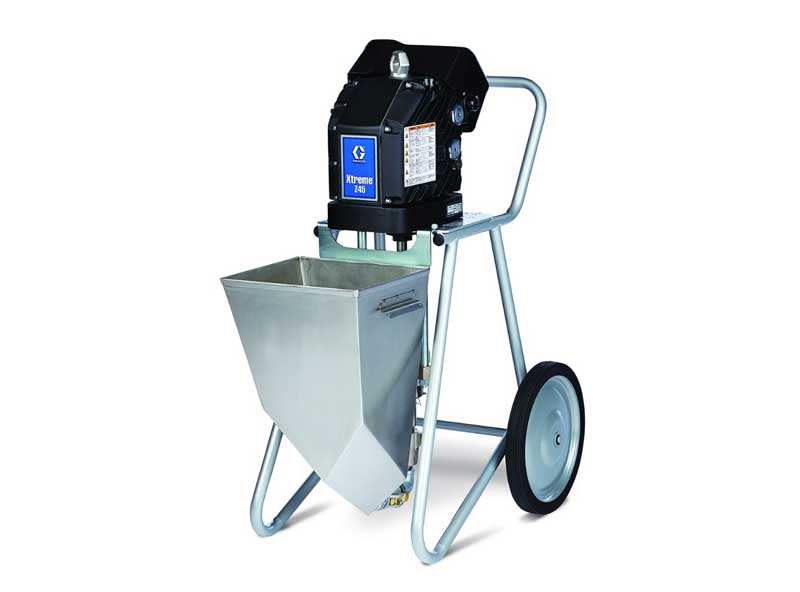

Xtreme Z45 & Z25 Xtreme Z45 & Z25 Xtreme Z45 & Z25
หมวดหมู่สินค้า: เครื่องพ่นกันซึม

20 เมษายน 2560

ผู้ชม 732 ผู้ชม

Specification

Electric High Pressure Airless Sprayer
US
Metric
Maximum fluid working pressure (Models: 24X450, 24X451, 24Y452)
31 MPa, 310 bar
Maximum fluid working pressure (Models: 24W315, 24W316, 24Y317, 25A829)
17.9 MPa, 179 bar
Stroke length
120 mm
Maximum continuous cycle rate (To prevent premature pump wear, do NOT exceed maximum recommended speed of fluid pump)
33 cycles per minute
Weight
104 kg
Wetted Parts
Models 24X450, 24X451, 24Y452, 24W315, 24W316, 24Y317: Carbon Steel, Alloy Steel, 304, 440 and 17-PH Grades of Stainless Steel, Zinc and Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE; Leather, Aluminum
Models 25A829: Carbon Steel, Alloy Steel, 304, 440 and 17-PH Grades of Stainless Steel, Zinc and Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE; Aluminum
Operating temperature range *
-5° to 50° C
Input voltage
200-240 VAC, single phase, 50/60 Hz
Input current
20A maximum
Sound pressure
74 dB at maximum cycle rate
Oil capacity
1.4 liters
Oil specification
Graco part number 16W645 ISO 220 silicone-free synthetic gear oil
Inlet/Outlet Sizes
Fluid inlet size
1-1/4 npt(m)
Fluid outlet size
3/8 npt(m)
Hose Requirements
Minimum pressure
31 MPa, 310 bar
Minimum length
15 m
Minimum ID
10 mm
Maximum resistance per ISO 8028
30,000 Ω/M
* Maximum fluid temperature of 25A829: 200° C (390° F)
